Yangpu Drop-Type Case Packer Machine for Bottles and cans YPZX-D01
Model： YPZX-D01
Voltage： 380V, 50/60Hz
Packing speed： 8–16 cartons/min
Applicable cartons：L260–500 × W200–380 × H200–400 mm
Air Supply： 5–6 kg/cm², 460 L/min
Packing Type：Pick & Place / Drop Type
Machine Size： (L) 1300 × (W) 1300 × (H) 1800 mm
I. Machine Features

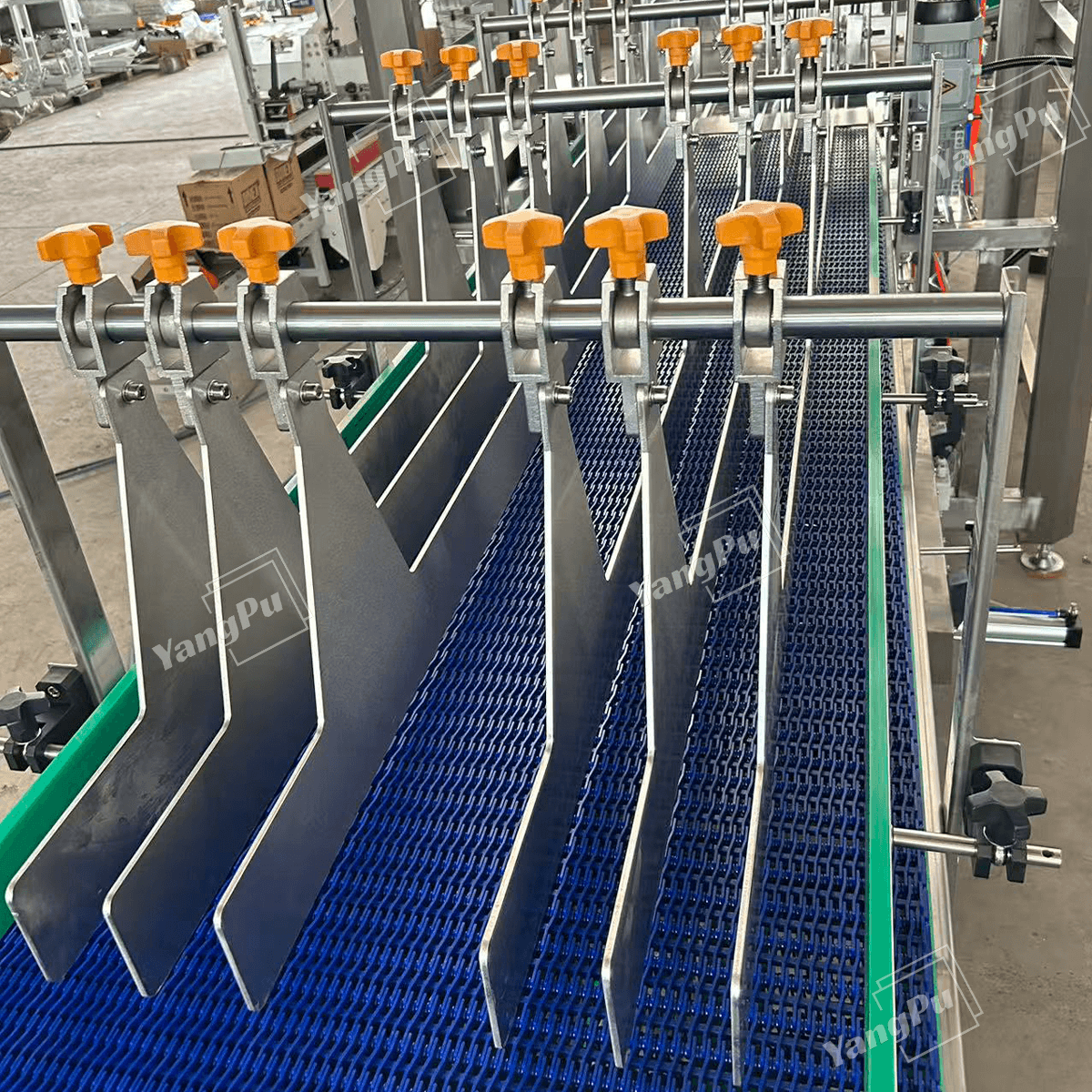

- Automatically arranges and combines products according to customer carton packing requirements.

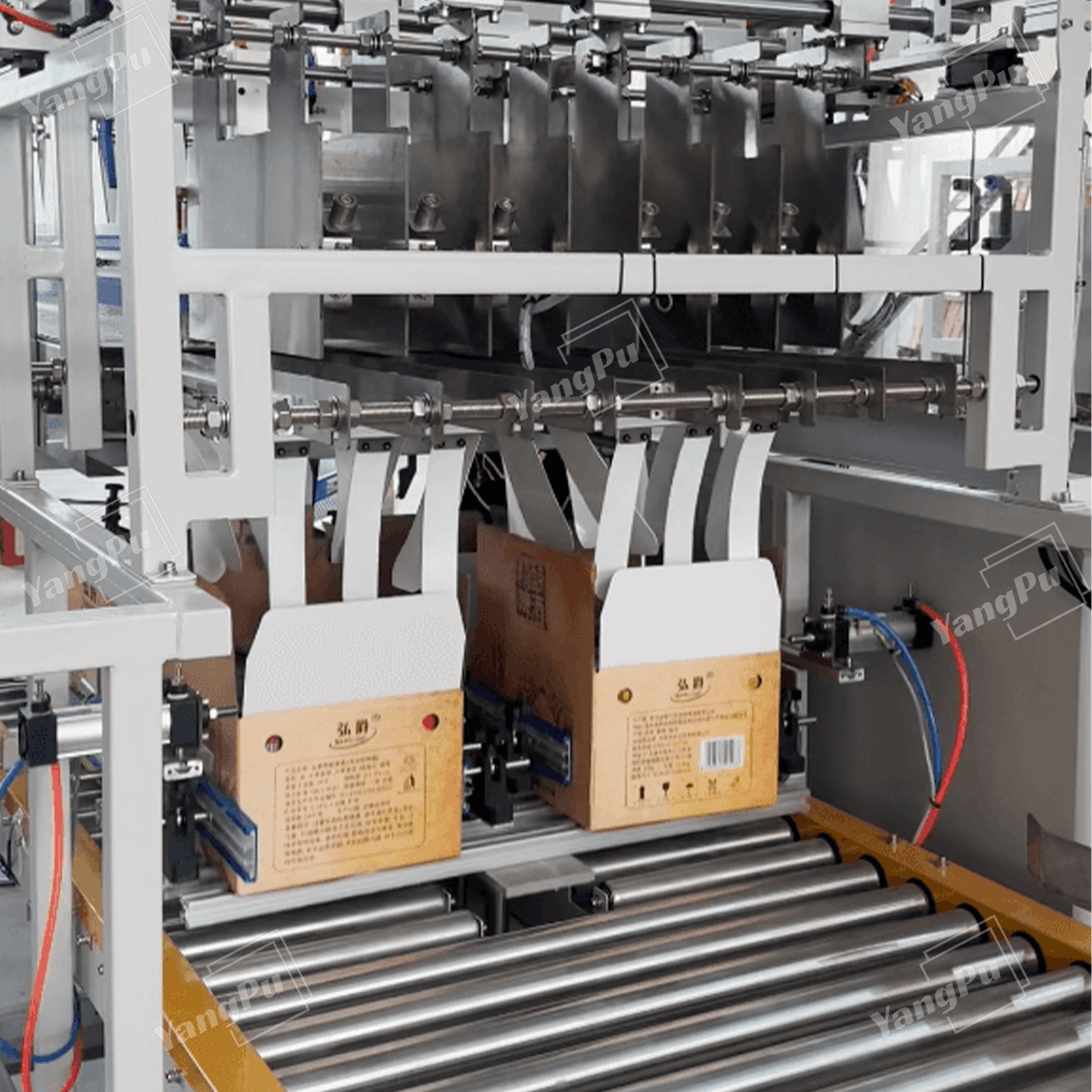

- During packing, the equipment automatically opens and positions the top of the carton, ensuring smooth packing and eliminating the risk of carton jamming.
- Wide application range, capable of meeting carton packing needs for products of various specifications.
- Product sorting and carton packing are completed at the same station, solving the problem of large size and excessive space occupation of conventional cartoning machines.

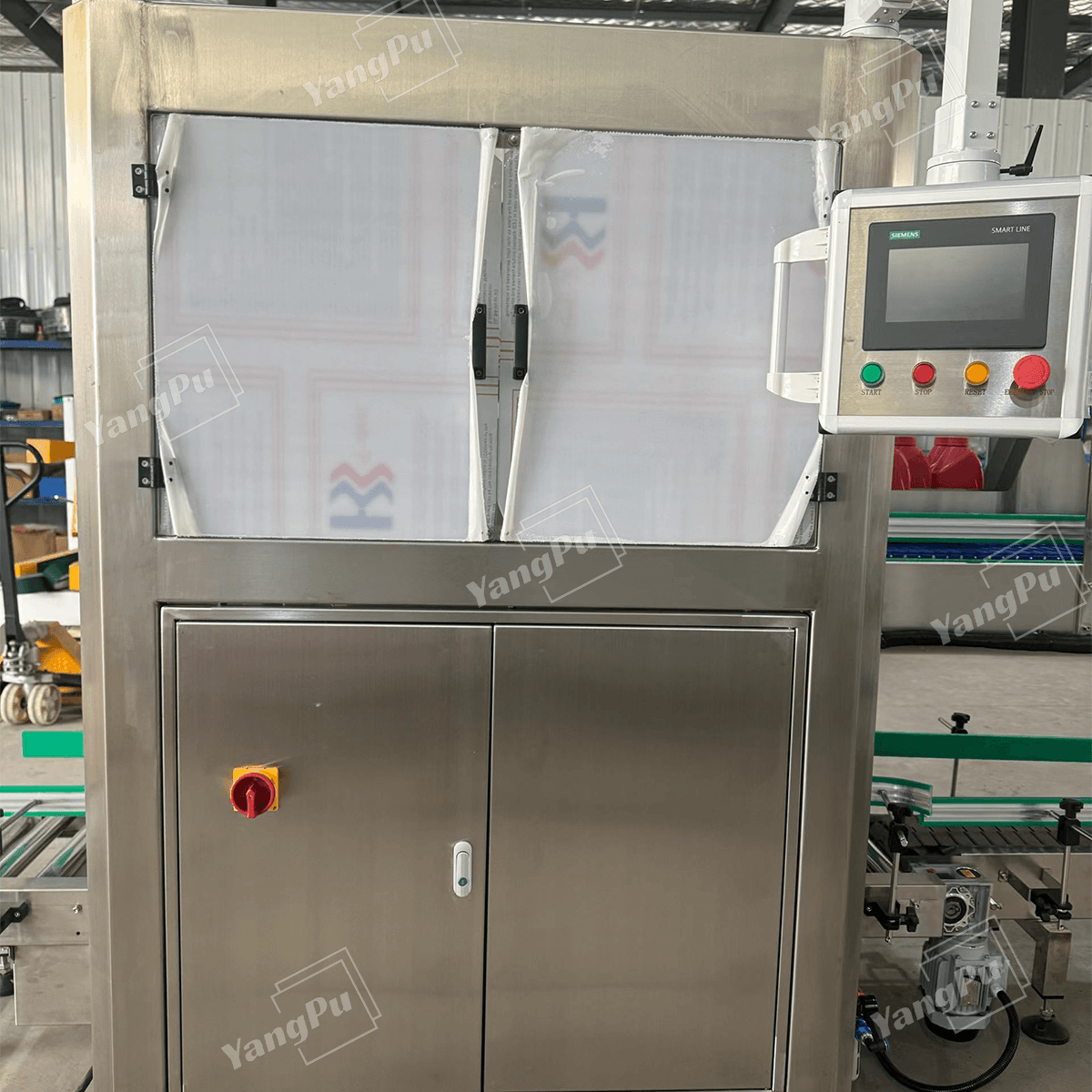

- Control mode: PLC + touch screen + standard control buttons + signal switches, with automatic/manual operation modes.
- Fault points can be located via the touch screen, allowing easy troubleshooting.
- Suitable for industries such as edible oil, daily chemicals, and other light industries
- Pneumatic components: Airtac (Taiwan)
- PLC: XINJE brand
- Contactors and switches: Schneider Electric (France)
- Photoelectric sensors: OMRON (Japan)
- Rotating parts of the tape applicator use European-brand self-lubricating bearings
- Touch screen: XINJE brand
