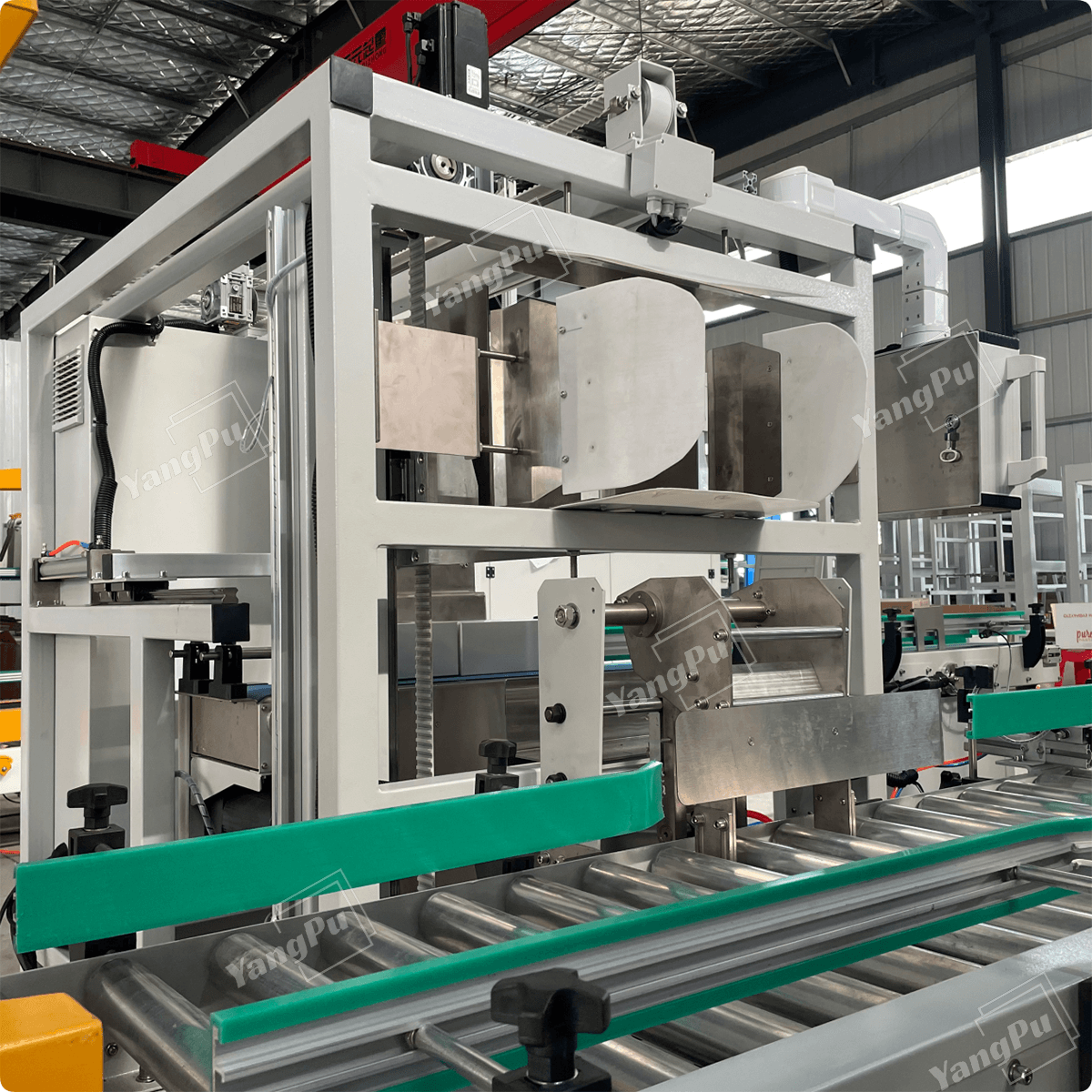

Yangpu Side-push Case Packer YPZX-S01
Model: YPZX-S01
Applicable cartons (inner boxes): L50–120 × W40–60 × H10–120 mm
Applicable shipping cartons: L250–550 × W250–400 × H150–300 mm
Packing speed: 200–360 cartons/hour
Packing infeed: 1 set
Machine dimensions: (L) 1100 × (W) 1600 × (H) 1500 mmPower supply: 380V, 50/60Hz
Air supply: 5–6 kg/cm², 460 L/min
Machine weight: 550 kg
I. Machine Features
- Automatically performs layered and grouped arrangement of products according to customer carton packing requirements.
- Before packing, the equipment automatically opens and positions the side opening of the carton, ensuring smooth packing and eliminating the risk of carton jamming.
- Wide application range, capable of meeting carton packing needs for products of various specifications.
- Product sorting and carton packing are completed at the same station, solving the problems of large size and excessive space occupation of conventional cartoning machines.

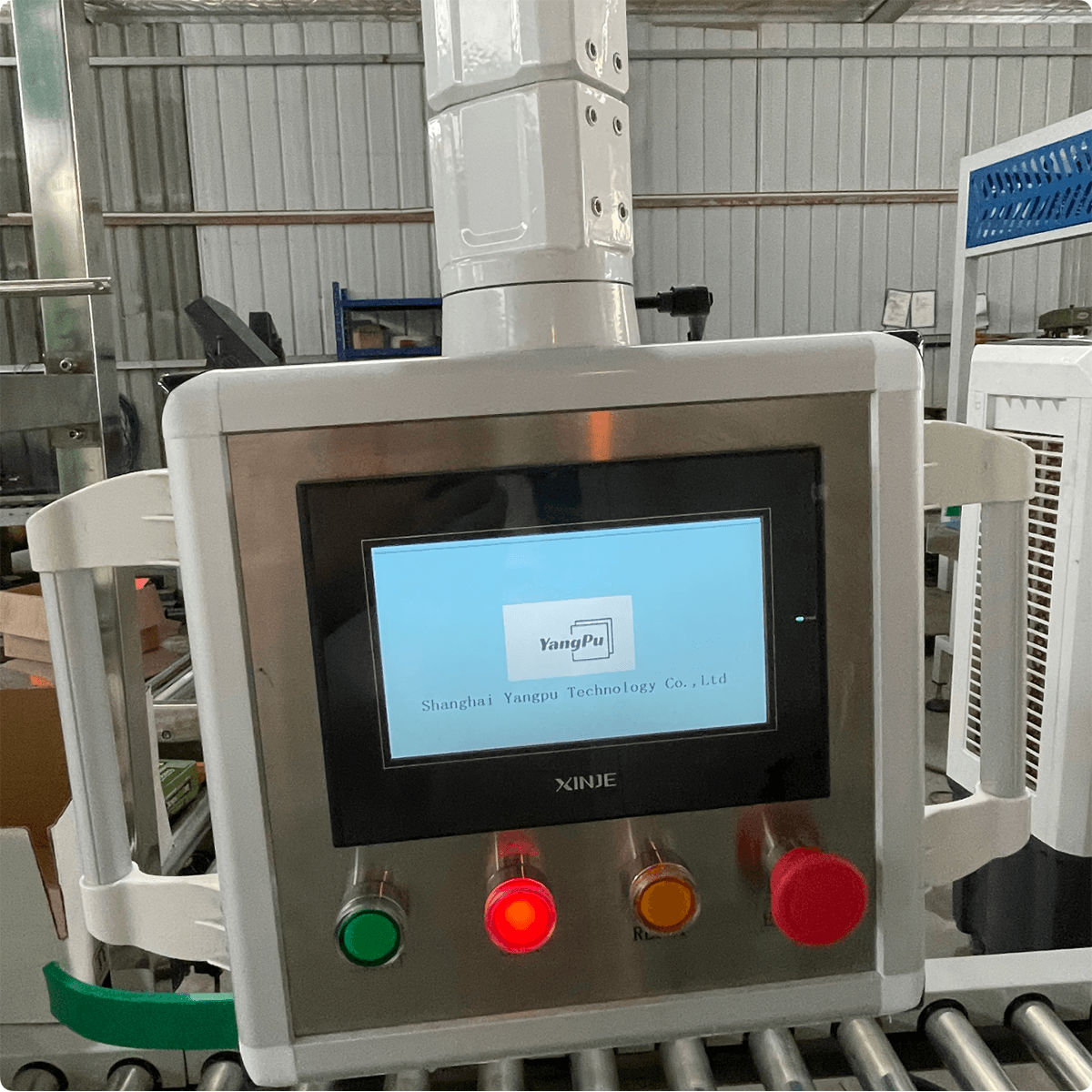

- Control mode: PLC + touch screen + standard control buttons + signal switches, with automatic/manual operation modes.
- Fault points can be located via the touch screen, allowing easy troubleshooting.
- Suitable for industries such as pharmaceuticals, food, daily chemicals, and other light industries.
II. Main Advantageous Configurations
- Pneumatic components: Airtac (Taiwan)
- PLC: XINJE brand
- Contactors and switches: Schneider Electric (France)
- Photoelectric sensors: OMRON (Japan)
- Rotating parts of the tape applicator use European-brand self-lubricating bearings
- Touch screen: XINJE brand
