Yangpu Drop-Type Case Packer Machine for Bottles and cans YPZX-02
Key Advantages:

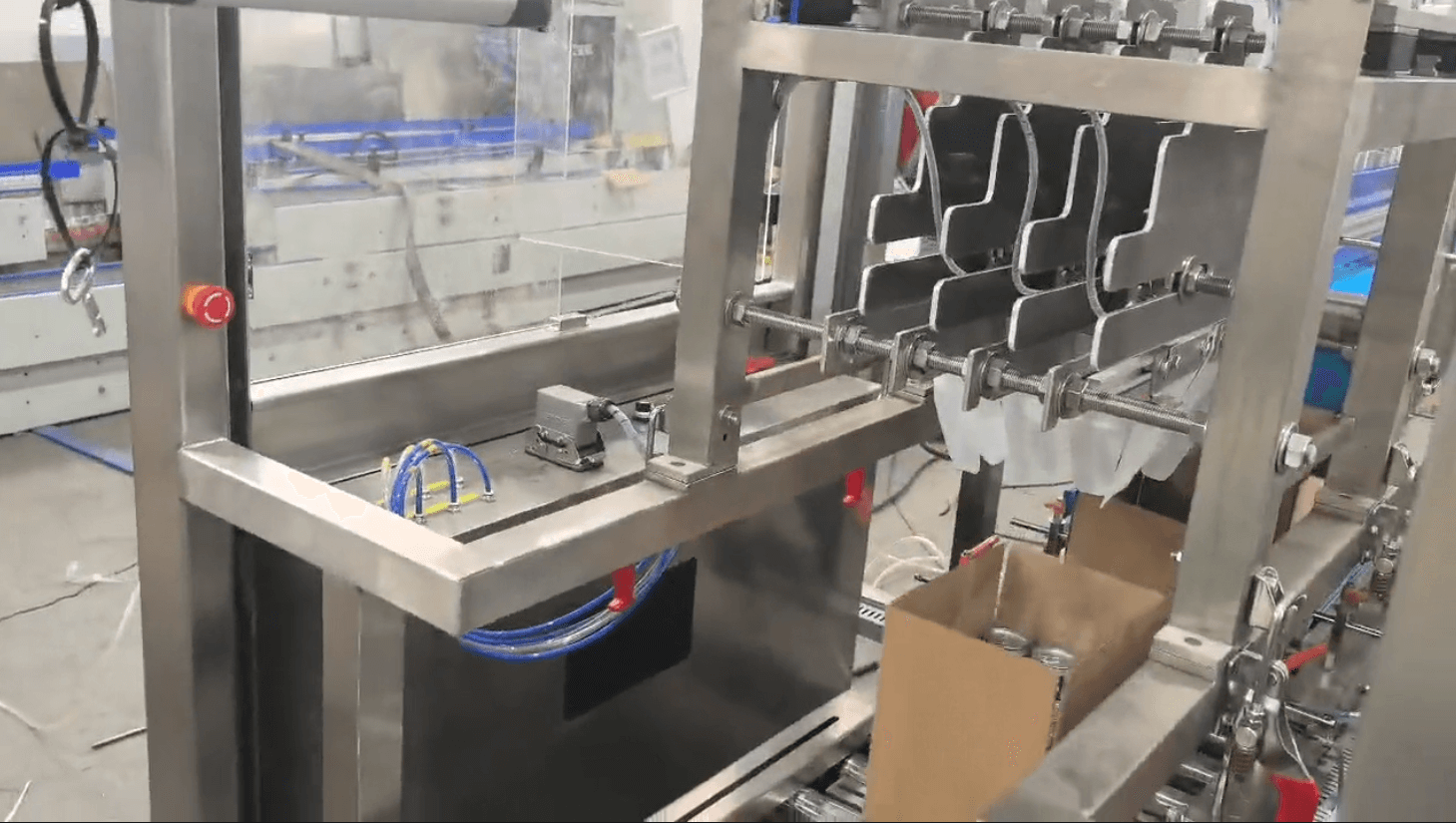

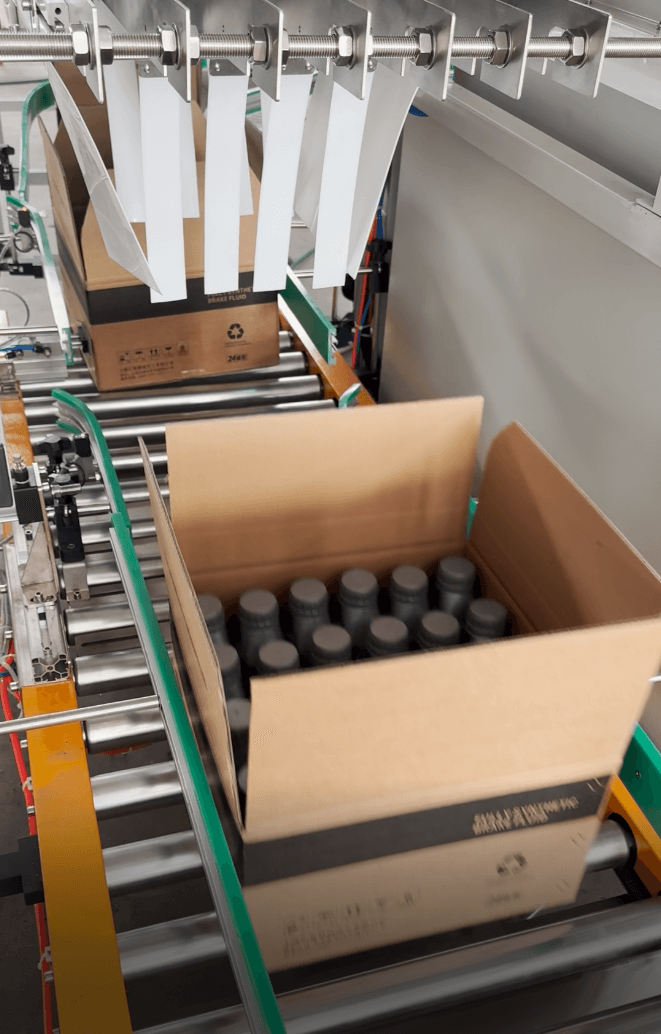

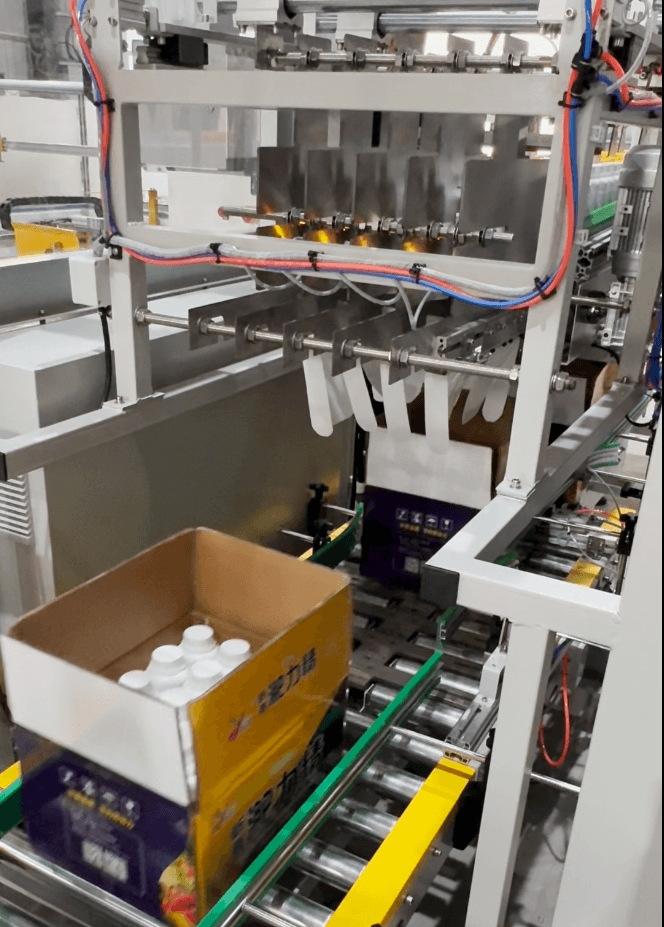

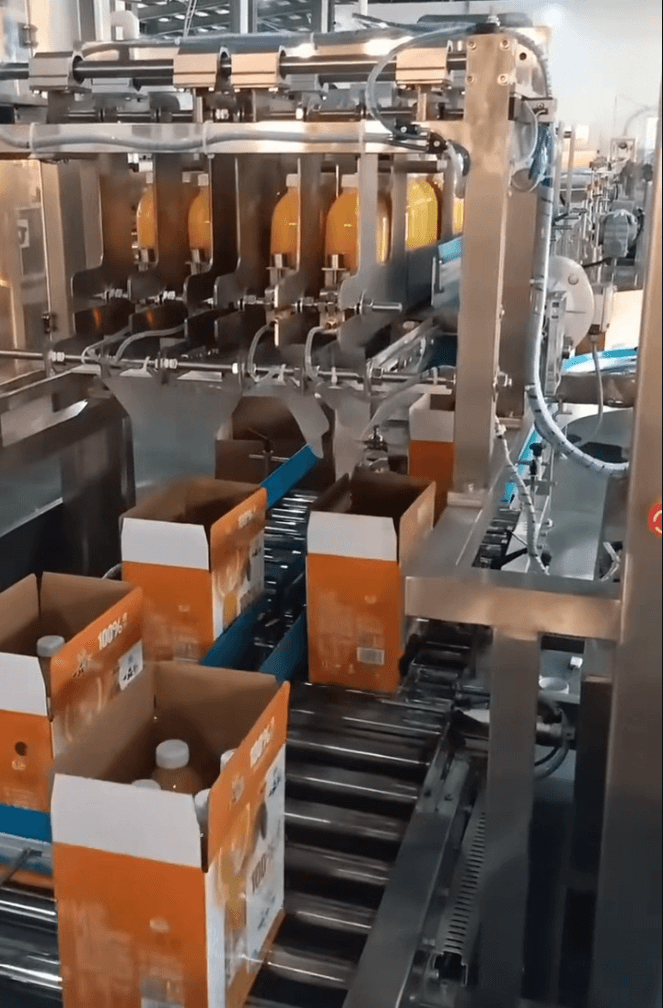

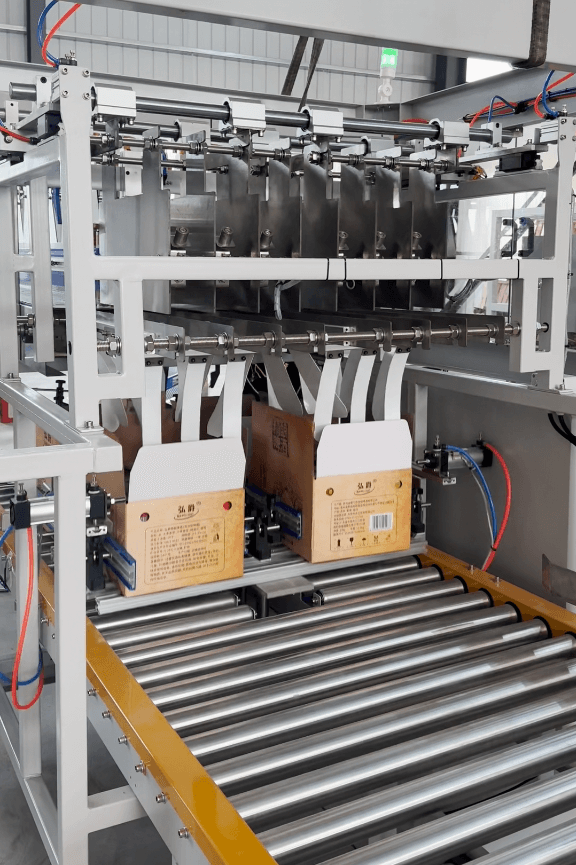

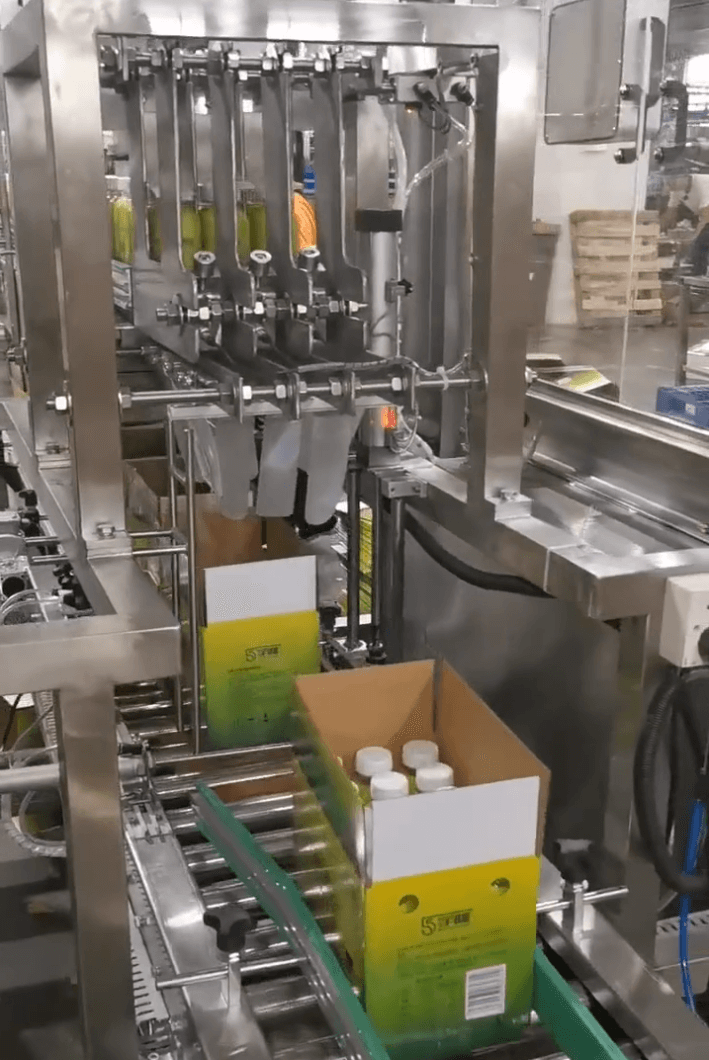

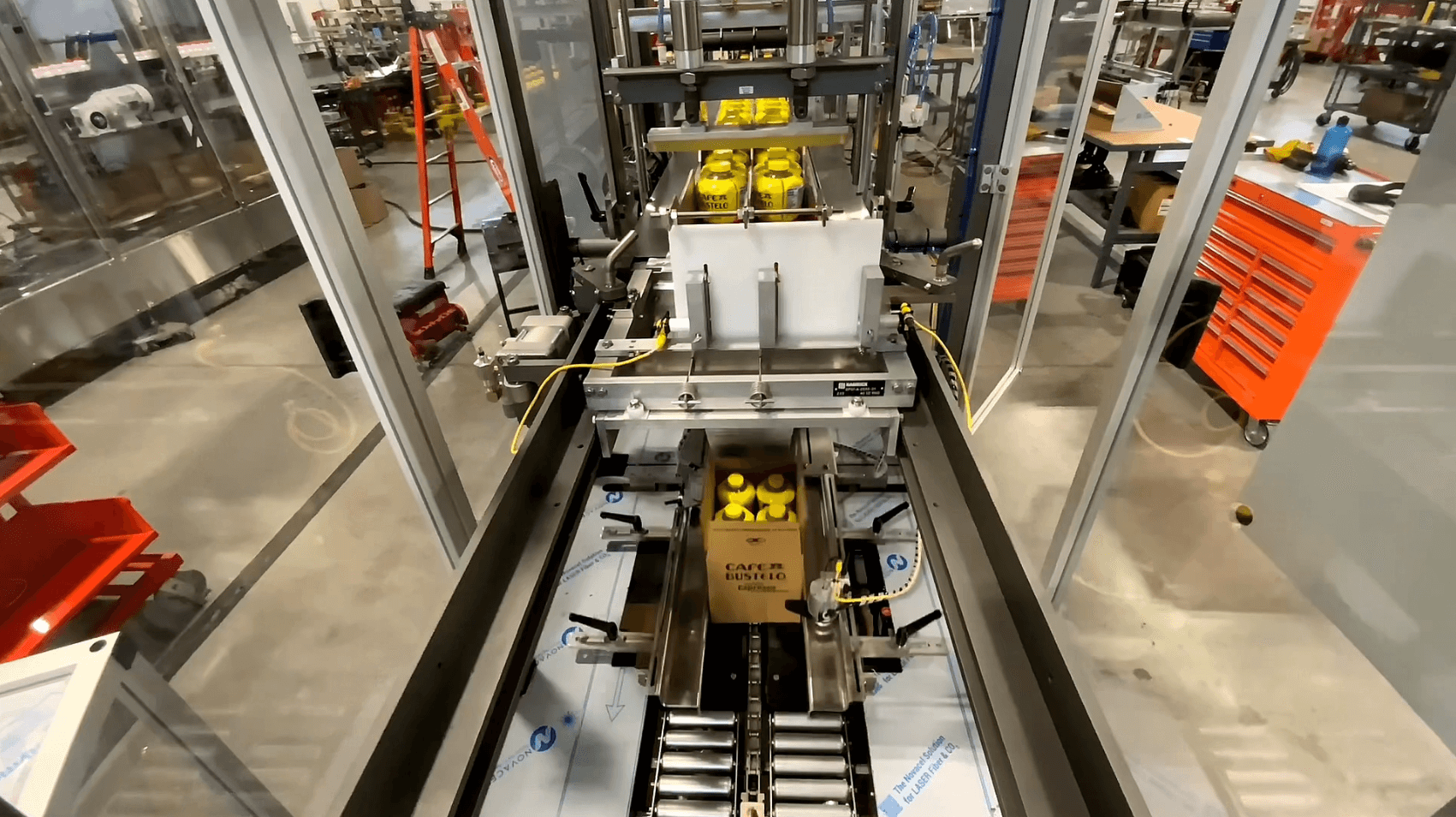

The drop-type case packing machine is an economical solution for packing bottles or cans into cartons. Products are grouped and then dropped into cartons efficiently.
- Simple structure, easy maintenance
- Lower investment cost
- Suitable for high-speed production
- Stable grouping and dropping system
- Up to 8-16 cartons/min

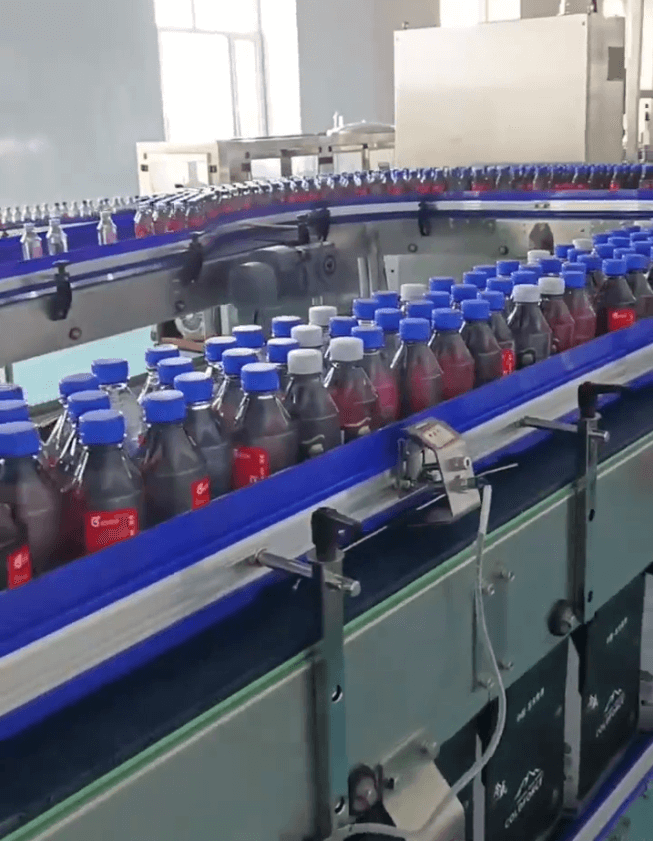

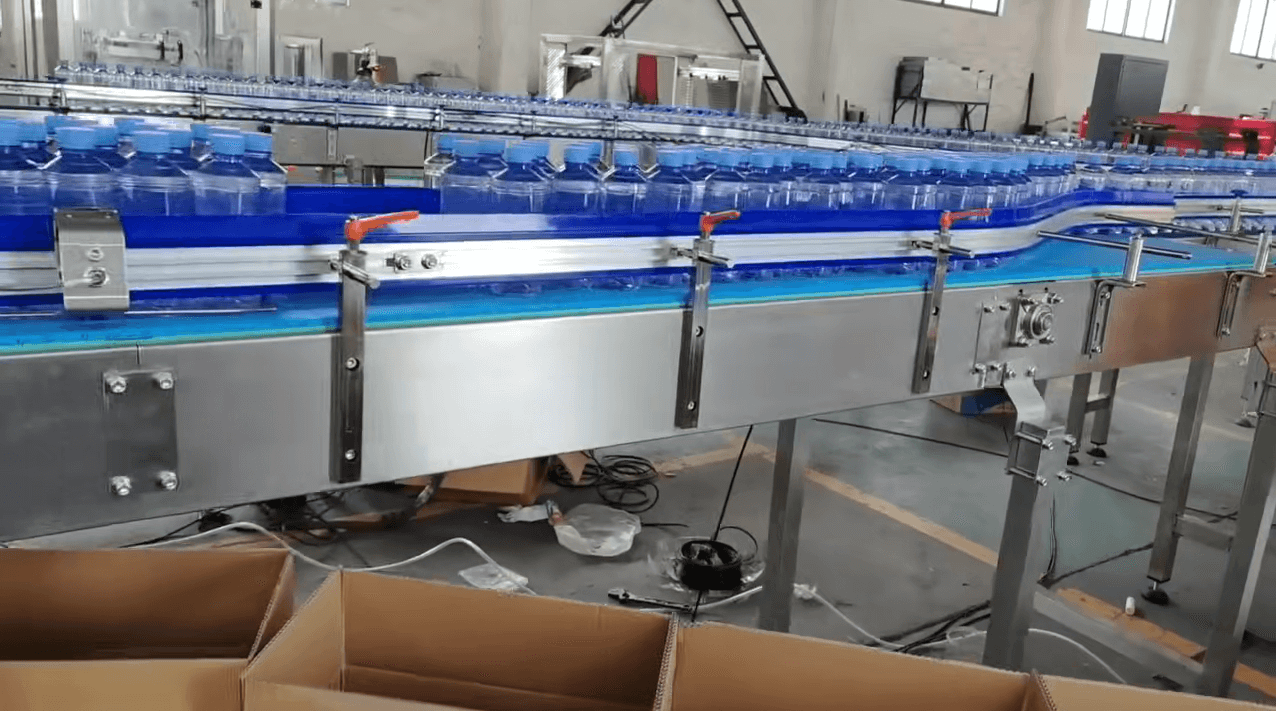

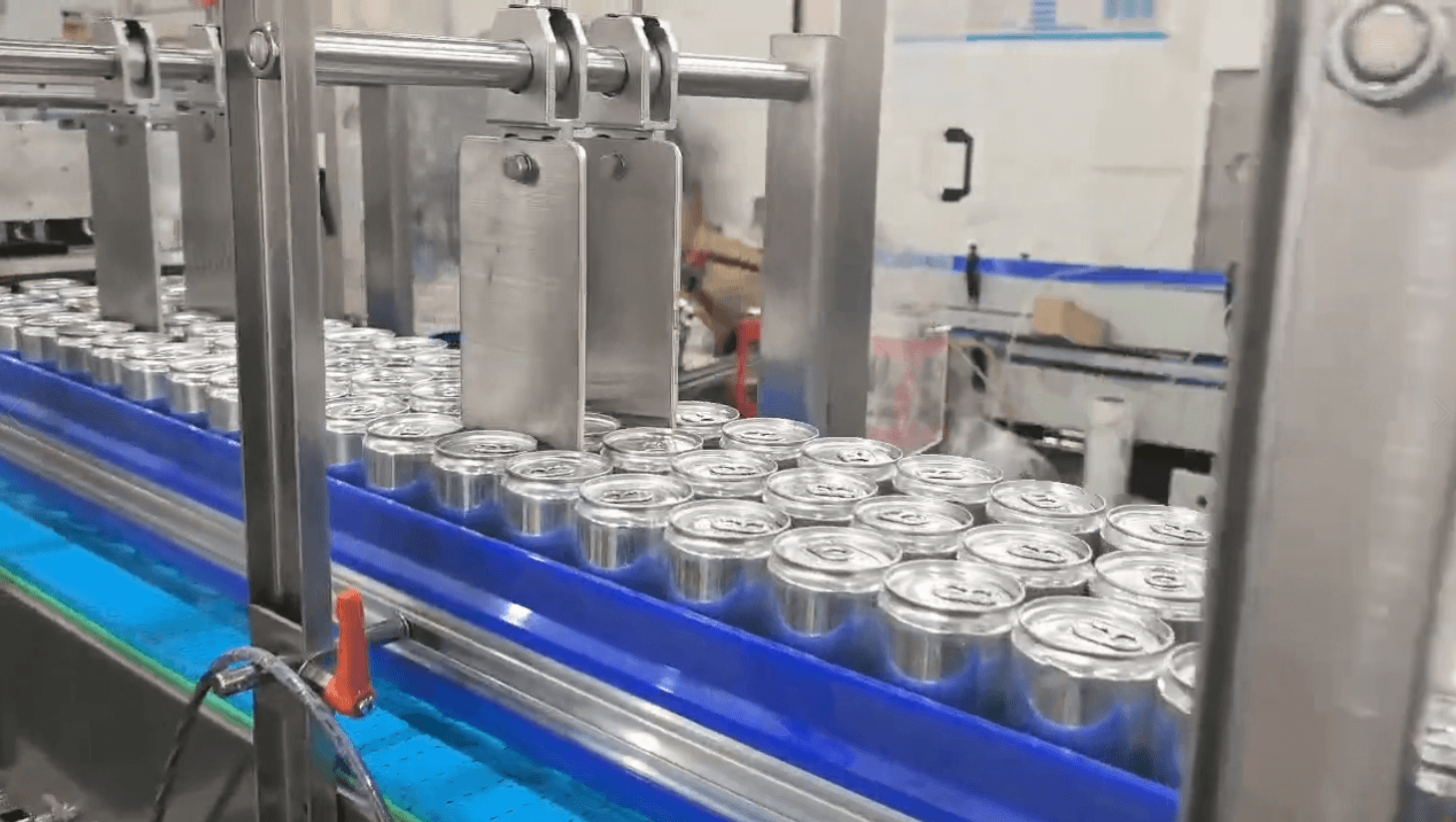

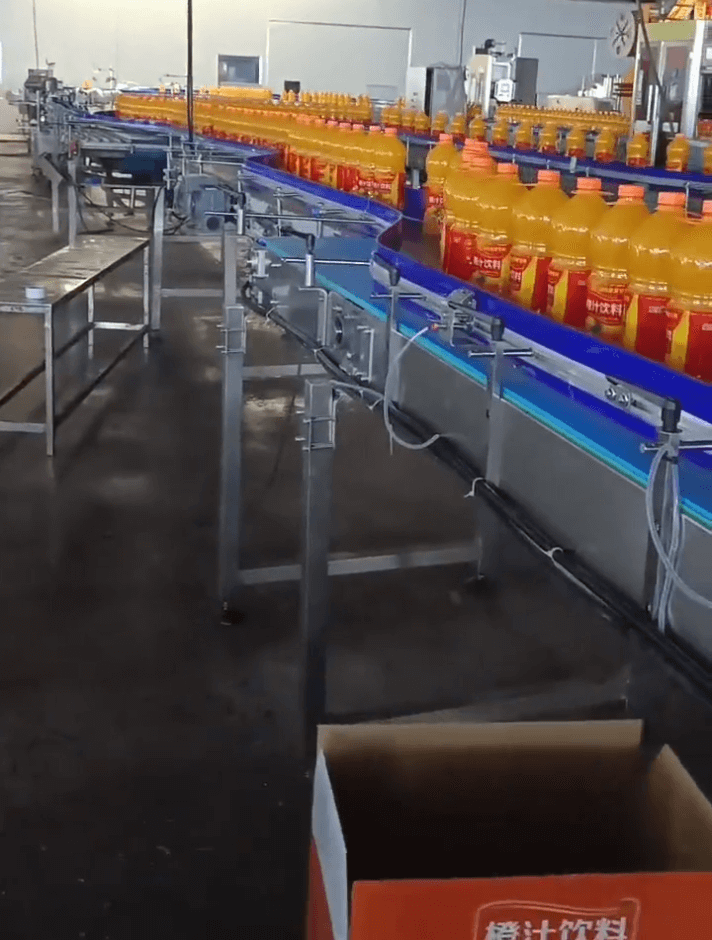

Application: Best for plastic bottles, cans, food&beverage mass production, cost-sensitive projects
Application & Solution
I. Machine Features

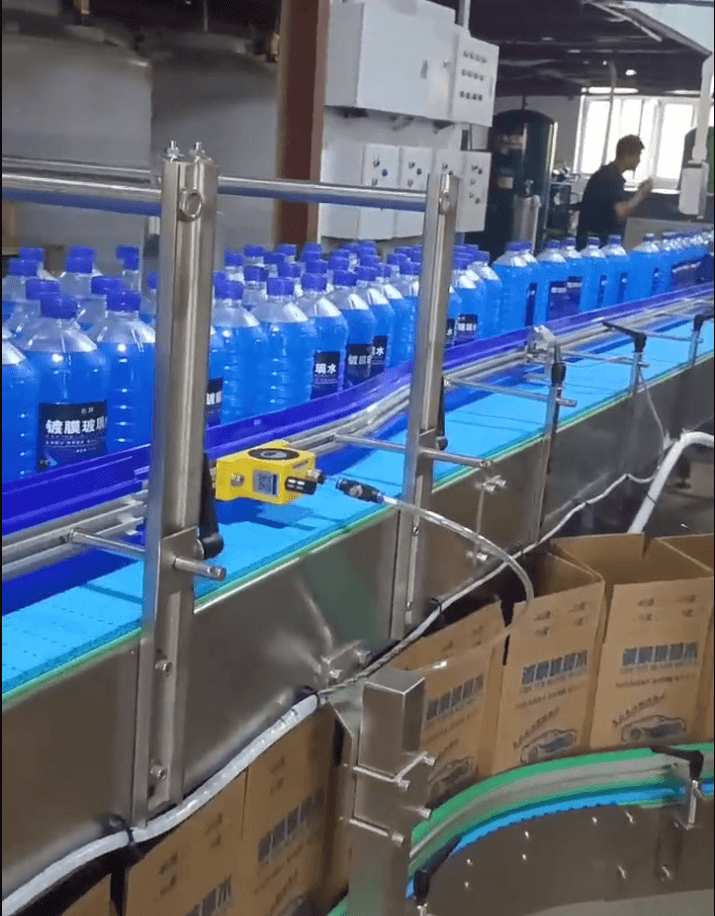

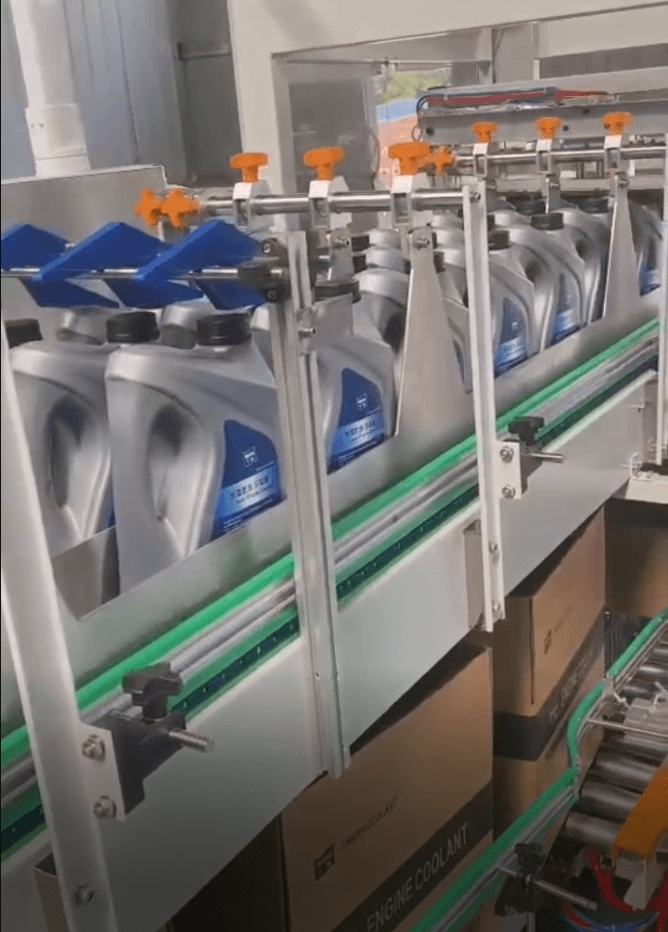

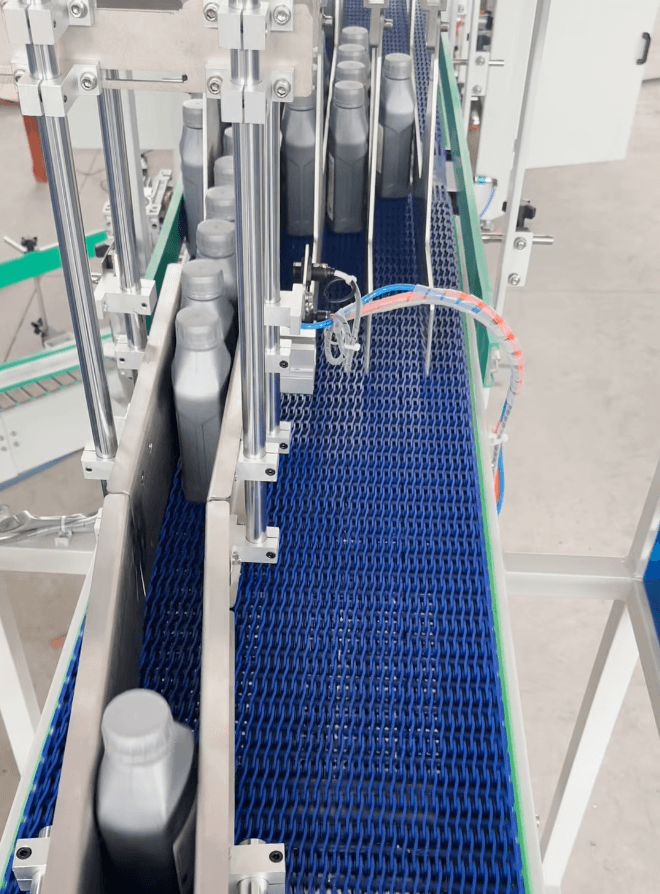

- Automatically arranges and combines products according to customer carton packing requirements.
- During packing, the equipment automatically opens and positions the top of the carton, ensuring smooth packing and eliminating the risk of carton jamming.
- Wide application range, capable of meeting carton packing needs for products of various specifications.
- Product sorting and carton packing are completed at the same station, solving the problem of large size and excessive space occupation of conventional cartoning machines.
- Control mode: PLC + touch screen + standard control buttons + signal switches, with automatic/manual operation modes.
- Fault points can be located via the touch screen, allowing easy troubleshooting.
- Suitable for industries such as edible oil, daily chemicals, and other light industries
- Pneumatic components: Airtac (Taiwan)
- PLC: XINJE brand
- Contactors and switches: Schneider Electric (France)
- Photoelectric sensors: OMRON (Japan)
- Rotating parts of the tape applicator use European-brand self-lubricating bearings
- Touch screen: XINJE brand
| Item | Specification |
| Model | YPZX-02 |
| Voltage | 380V, 50/60Hz |
| Packing speed | 8–16 cartons/min |
| Applicable cartons | L260–500 × W200–380 × H200–400 mm |
| Air Supply | 5–6 kg/cm², 460 L/min |
| Packing Type | Pick & Place / Drop Type |
| Machine Size | (L) 1300 × (W) 1300 × (H) 1800 mm |
